Truck Load Volume Measurement System

The Measure Di Load Volume Scanner (LVS) system utilizes laser scanning technology combined with falkenauge software to measure the exact volume of the material loaded in a truck or trailer, dumpers, or tippers. With this system, one can measure the actual volume.

LVS system components

The standard block-mounted LVS configuration shown below is designed for use with on-road trucks and small off-highway articulated dumpers. Vehicles are scanned by driving slowly below the elevated scan head. The scanning process is fully automated. A touch-screen operator console provides for easy operator control and monitoring of the system and a high-visibility LED message board displays load results, driver instructions, and status messages. All LVS systems also include an RFID tag reader (for automatic identification of each truck and trailer), docket printer, LVS measurement software, and Overview™ reporting software.

Benefits of volume scanner system

We stand apart with our ability to deliver reliable, accurate and consistent measurements for every measured load, enabling you to make confident business decisions. Our proprietary algorithms and a range of checks and balances coded into the LVS software, ensure that the scanner doesn’t report inaccurate readings, even in the unlikely event that it can’t obtain a reading from the collected scan data. With virtually no moving parts, there’s no need for re-calibration or scheduled servicing. Our volume scanners will operate consistently, even in extreme and remote environments. Measure Di is the only volumetric measurement system company that has proven accuracy of +/-1% of value.

Better information for greater control

The LVS system is fast, non-contact, and suitable for a range of loose bulk materials. Every load record is stored in the system and connected to the desktop by LAN, WiFi, or cellular network. Data is viewed and sorted using LVS Overview™ reporting software and can be exported to Microsoft Excel for manipulation, or integrated with existing business information systems. Every load delivered or removed from the site is accounted for, and truck arrival and departure times are automatically tracked. The LVS system will help you better understand your business, your material movements, and even the quality of the bulk materials you’re dealing with. No more bulking or compaction factors affecting your bottom line!

Generate a high return on investment, quickly

With easy onsite installation, the load volume scanning system can usually be fully operational within a few hours. Our portable systems can be set up on a suitable site and will be ready to measure trucks in less than 30 minutes. With automated scanning there’s no need for the trucks to stop, thus improving productivity. Once you implement volumetric load scanning, you’ll see significant productivity gains, reduced customer supply disputes, and ensure you only pay for what you receive, all with one streamlined system. The system can be easily operated by in-house staff, dump truck drivers, or in fully automated mode. Even unskilled operators can quickly learn to use this intuitive payload management system. Automatically generated 2D scan images enable operator coaching.

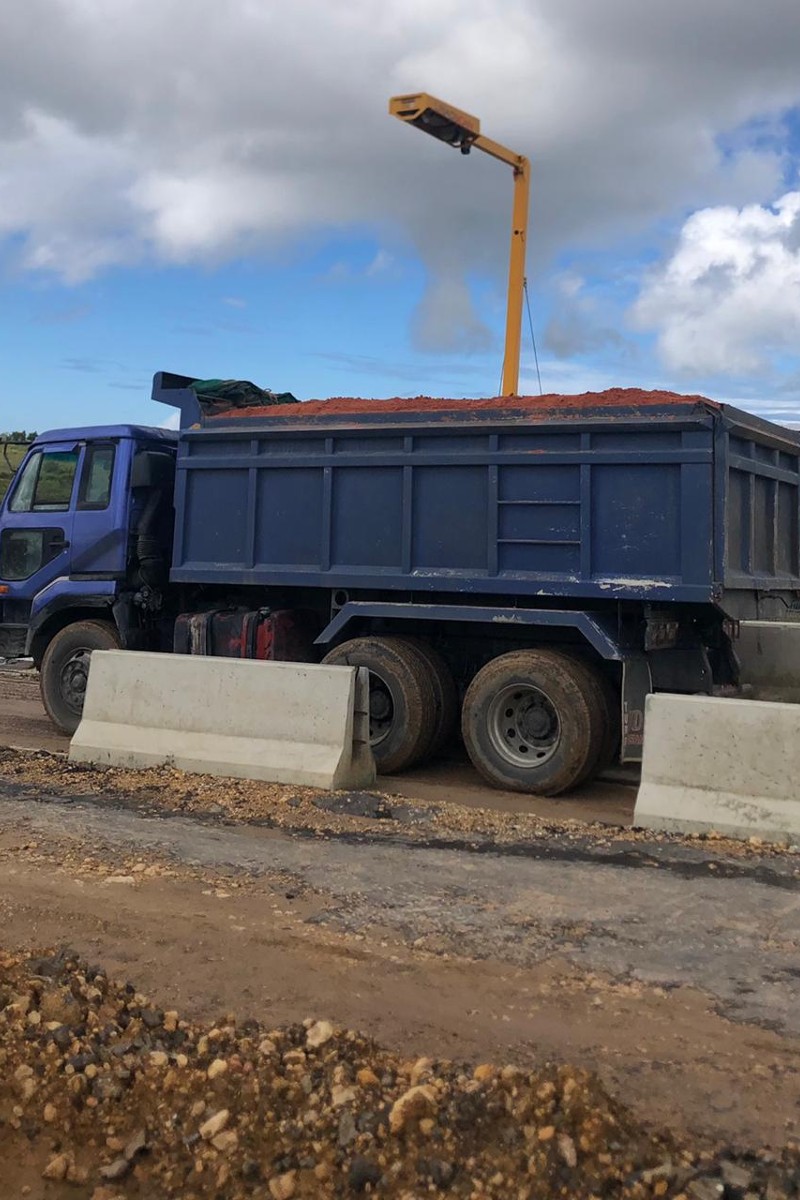

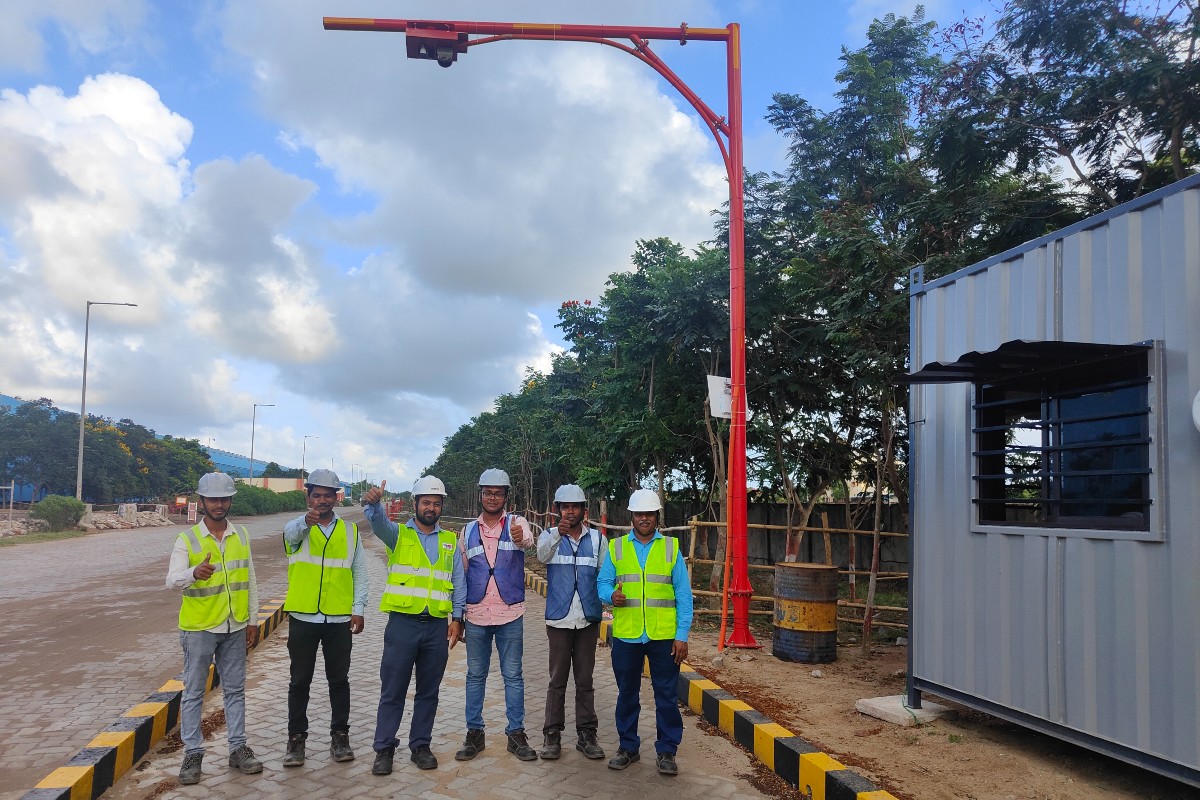

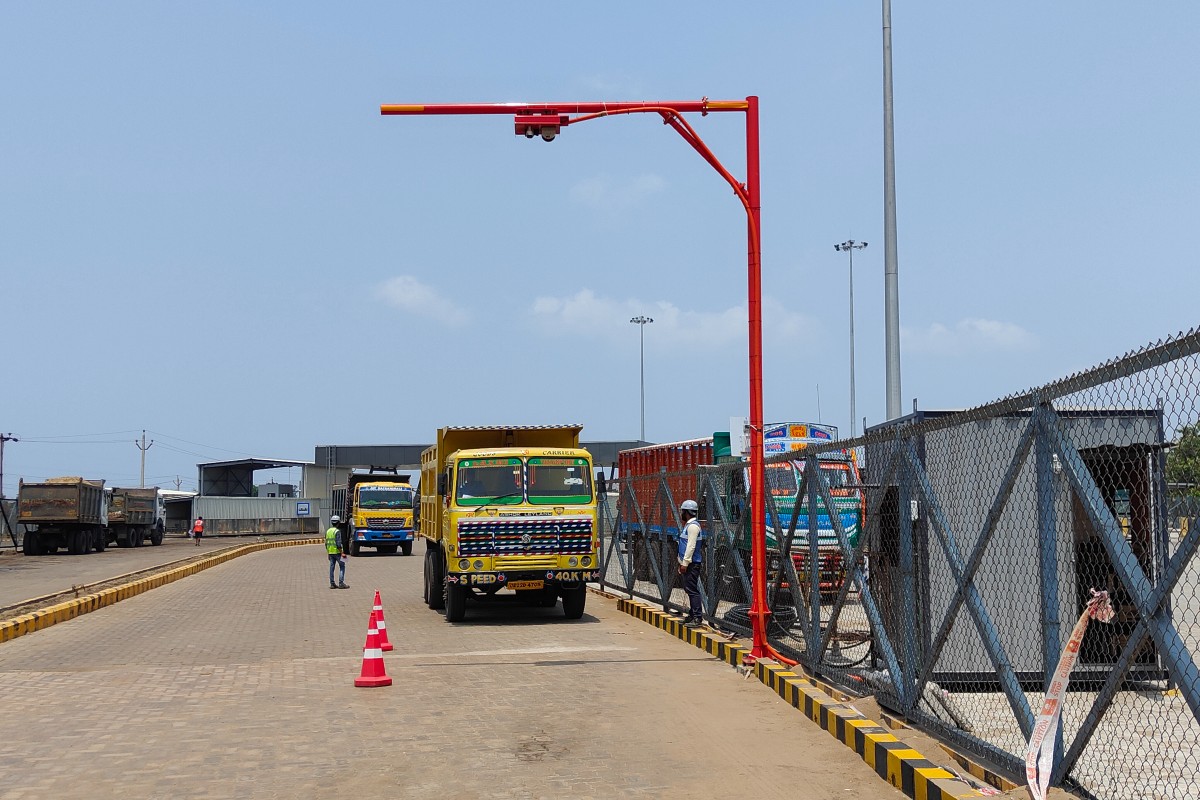

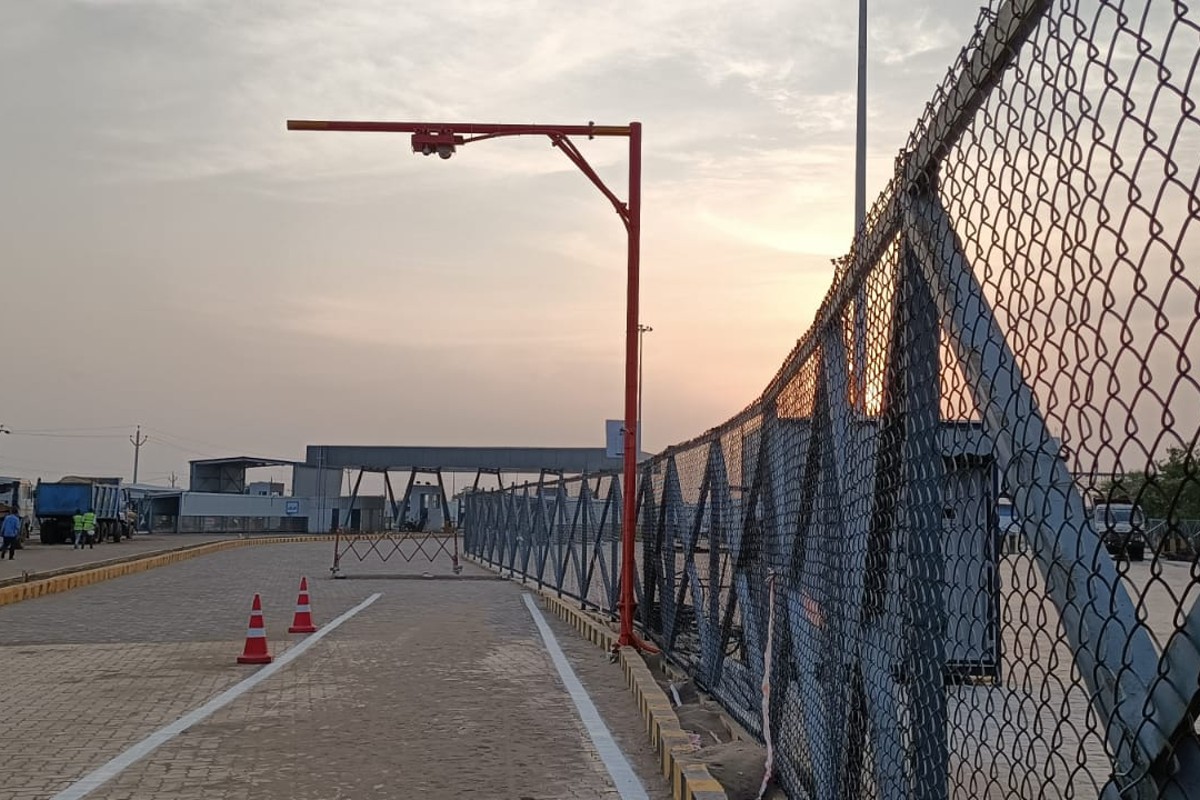

Field Installations
